Generate a CSR in IIS 5 Or 6

This article will show you how to generate a Certificate Signing Request (CSR) in Microsoft’s Internet Information Server (IIS) 6. (The same steps will work if you are using IIS 5.) Note that you may need to create a new website before generating your CSR.

  1. In your IIS Manager, navigate to the “Web Sites” section and locate the site you wish to create the CSR for.

    iis56_CSR_01

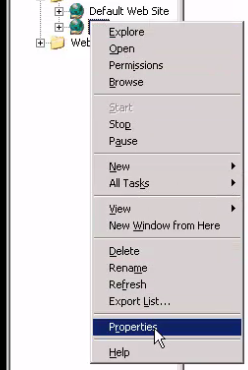

  2. Right-click the globe icon for your site and select “Properties.”

    iis56_CSR_02

  3. In the “Properties” panel, click the “Directory Security” tab.

    iis56_CSR_03

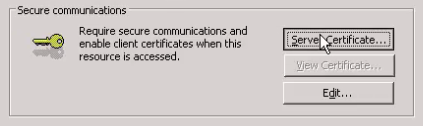

  4. Click the “Server Certificate” button.

    iis56_CSR_04

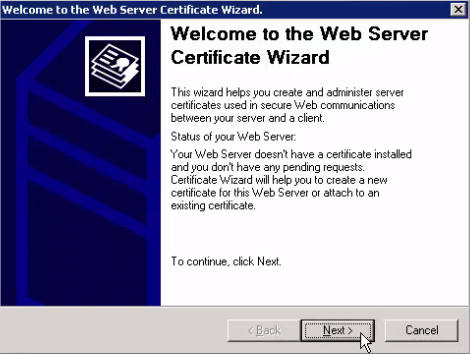

  5. This will open the Web Server Certificate Wizard. Click “Next” to move past the welcome window.

    iis56_CSR_05

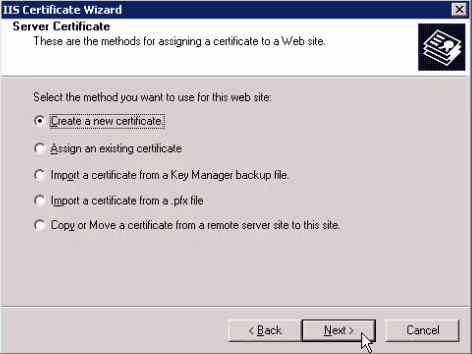

  6. Select “Create a new certificate” and click “Next.”
    iis56_CSR_06

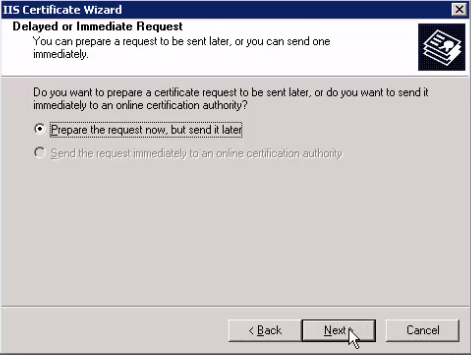

  7. Select “Prepare the request now, but send it later.” Click “Next.”

    iis56_CSR_07

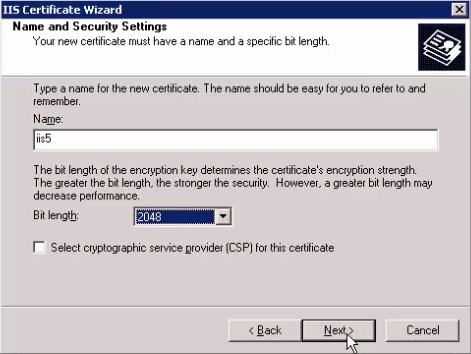

  8. Enter a name for the new certificate. Make sure this is a unique name and one you can remember easily. SSL.com recommends setting the bit length to 2,048. Make sure the box next to “Select cryptographic service provider” is unchecked. Click “Next” to proceed.

    iis56_CSR_08

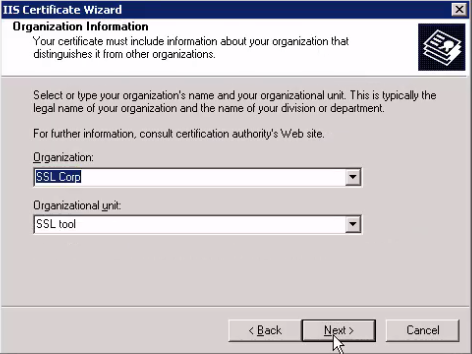

  9. Enter the name your business is legally registered under in the “Organization” field. The “Organizational Unit” field can be used to identify the department or section, such as “Engineering”or “Human Resources.” Click “Next” when this information is entered.

    iis56_CSR_09

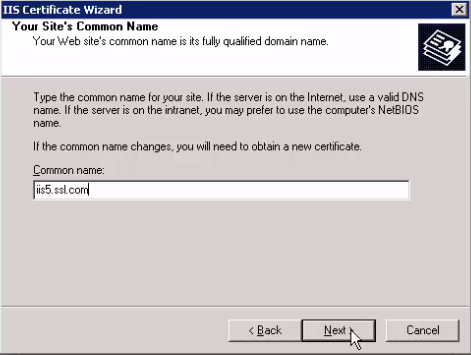

  10. Enter the “Common name”for your site – this typically is identical to the domain name of the web site you wish to protect with this certificate. After you have entered the common name, click “Next.”

    iis56_CSR_10

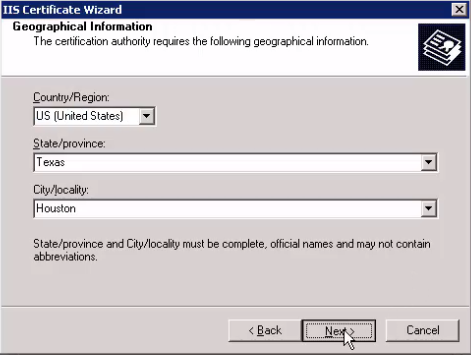

  11. Enter the Geographical Information for your company. Note that the name of the state must be spelled out, not abbreviated. Click “Next” to continue.

    iis56_CSR_11

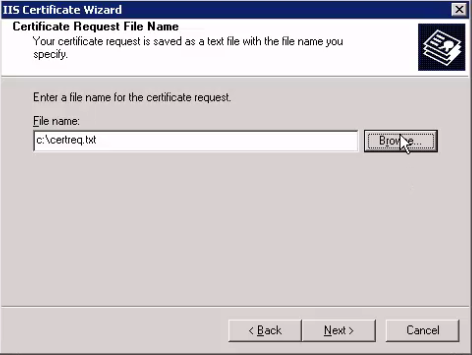

  12. Now you will determine the name and location to save the CSR to. Your CSR will be saved as a text file. Click “Browse” and navigate to choose the folder you wish to save your CSR to.

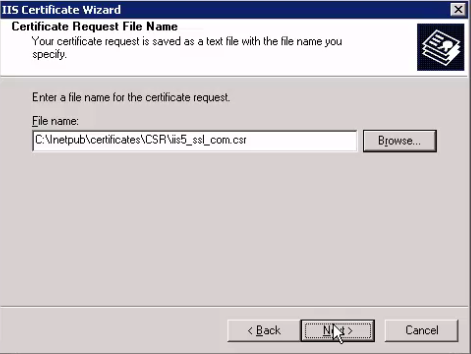

  13. Make a note of the location where you save the CSR, and remember to use a unique name for this file which ends in dot CSR. (You should save as type “All files”, not as a dot TXT file.) When you are satisfied with your choices, click “Save.”

    iis56_CSR_14

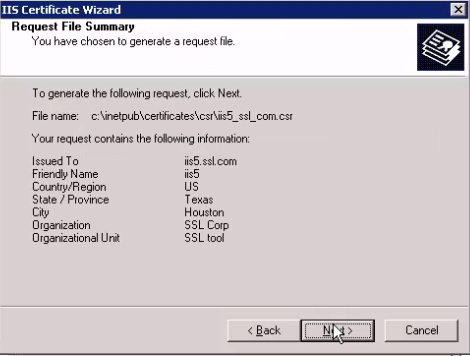

  14. Review the information that will be incorporated into your CSR. If any changes are required, click “Back” to return to and edit the information. If the information looks good, click “Next” to generate the CSR.

    iis56_CSR_15

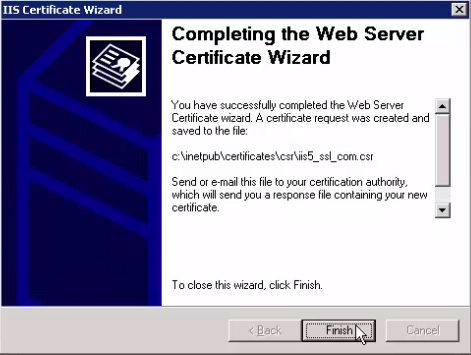

  15. Your CSR is now created and saved to the location you designated. Click “Finish” to close the IIS Certificate Wizard.

    iis56_CSR_16

Thank you for choosing SSL.com! If you have any questions, please contact us by email at Support@SSL.com, call 1-877-SSL-SECURE, or just click the chat link at the bottom right of this page. You can also find answers to many common support questions in our knowledgebase.
